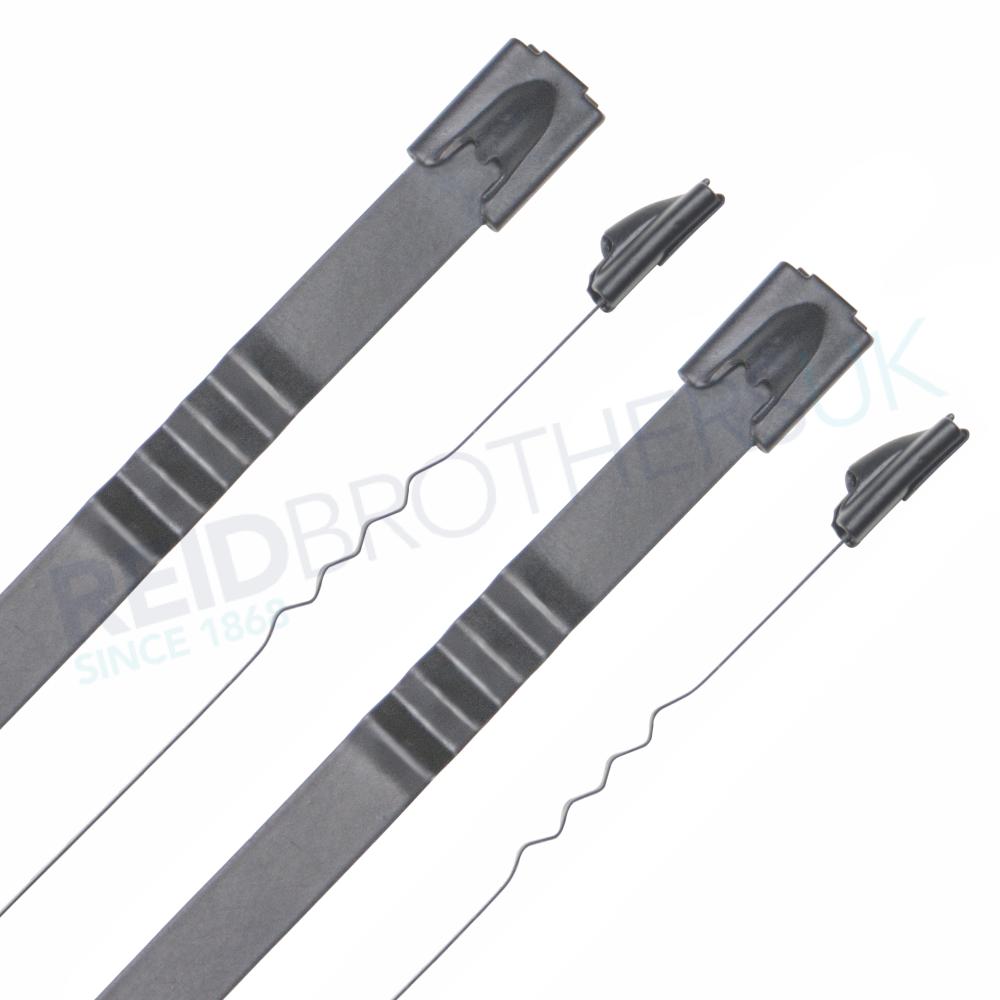

SureFast Coated Spring Type Stainless Steel Cable Ties
- Available for export
Key product features
Spring type
The unique spring form in these Stainless Steel Cable Ties maintains greater installed tension on non-resilient objects
About SureFast Stainless Steel Cable Ties
SureFast Spring Type Stainless Steel Cable Ties are made of high-quality Stainless Steel, making them ideal for food, petrochemical, ship building and Oil and Gas industries.
Spring Type Stainless Steel Cable Ties have a self-locking design which ensures a quick and secure installation, where their smooth, rounded edges make them ideal for all types of cable insulation. An advantage of spring type is that they will firmly lock onto applications where other stainless steel cable ties will not function. They have superior performance and reliability, and can also hold tension on a solid bundle with minimal force applied. The Pure Polyester & Epoxy Coating adds an extra layer of protection against corrosive environments which increases the durability of these Stainless Steel Cable Ties.
Resistance
- Corrosion
- Vibration
- Radiation
- Extreme Temperature
Where are cable ties used?
- Cable bundling
- Sign Mounting
- Post Mounting
- Exhaust Pipes
Technical Information
- 304 & 316 Grade non-magnetic Stainless Steel
- Temperature Range of -80C > +150C
- Pure Polyester & Epoxy Coating Surface Finish
- Non-Toxic
- Halogen Free
- Fireproof
- UV resistant
Spring Type Coated, 304 Stainless Steel, 7.9mm width
Reference | Material | Width | Length | Thickness | Max Diameter Single Loop | Minimum Loop Tensile Strength | Package Quantity |
---|---|---|---|---|---|---|---|
SF2860-CTD | 304 Stainless Steel | 0.31" / 7.9mm | 8" / 200mm | 0.01" / 0.25mm | 2.0" / 50mm | 1335N / 300lbs | 100 per bag |
SF2861-CTD | 304 Stainless Steel | 0.31" / 7.9mm | 10" / 260mm | 0.01" / 0.25mm | 2.7" / 69mm | 1335N / 300lbs | 100 per bag |
SF2862-CTD | 304 Stainless Steel | 0.31" / 7.9mm | 14" / 360mm | 0.01" / 0.25mm | 4.0" / 102mm | 1335N / 300lbs | 100 per bag |
SF2863-CTD | 304 Stainless Steel | 0.31" / 7.9mm | 20" / 520mm | 0.01" / 0.25mm | 6.0" / 152mm | 1335N / 300lbs | 100 per bag |
SF2864-CTD | 304 Stainless Steel | 0.31" / 7.9mm | 27" / 680mm<t/d> | 0.01" / 0.25mm | 7.5" / 190mm | 1335N / 300lbs | 100 per bag |
SF2865-CTD | 304 Stainless Steel | 0.31" / 7.9mm | 33" / 840mm | 0.01" / 0.25mm | 10.0" / 254mm | 1335N / 300lbs | 100 per bag |
SF2866-CTD | 304 Stainless Steel | 0.31" / 7.9mm | 39" / 1000mm | 0.01" / 0.25mm | 11.8" / 300mm | 1335N / 300lbs | 100 per bag |
Spring Type Coated, 316 Stainless Steel, 7.9mm width
Reference | Material | Width | Length | Thickness | Max Diameter Single Loop | Minimum Loop Tensile Strength | Package Quantity |
---|---|---|---|---|---|---|---|
SF2880-CTD | 316 Stainless Steel | 0.31" / 7.9mm | 8" / 200mm | 0.01" / 0.25mm | 2.0" / 50mm | 1335N / 300lbs | 100 per bag |
SF2881-CTD | 316 Stainless Steel | 0.31" / 7.9mm | 10" / 260mm | 0.01" / 0.25mm | 2.7" / 69mm | 1335N / 300lbs | 100 per bag |
SF2882-CTD | 316 Stainless Steel | 0.31" / 7.9mm | 14" / 360mm | 0.01" / 0.25mm | 4.0" / 102mm | 1335N / 300lbs | 100 per bag |
SF2883-CTD | 316 Stainless Steel | 0.31" / 7.9mm | 20" / 520mm | 0.01" / 0.25mm | 6.0" / 152mm | 1335N / 300lbs | 100 per bag |
SF2884-CTD | 316 Stainless Steel | 0.31" / 7.9mm | 27" / 680mm<t/d> | 0.01" / 0.25mm | 7.5" / 190mm | 1335N / 300lbs | 100 per bag |
SF2885-CTD | 316 Stainless Steel | 0.31" / 7.9mm | 33" / 840mm | 0.01" / 0.25mm | 10.0" / 254mm | 1335N / 300lbs | 100 per bag |
SF2886-CTD | 316 Stainless Steel | 0.31" / 7.9mm | 39" / 1000mm | 0.01" / 0.25mm | 11.8" / 300mm | 1335N / 300lbs | 100 per bag |
