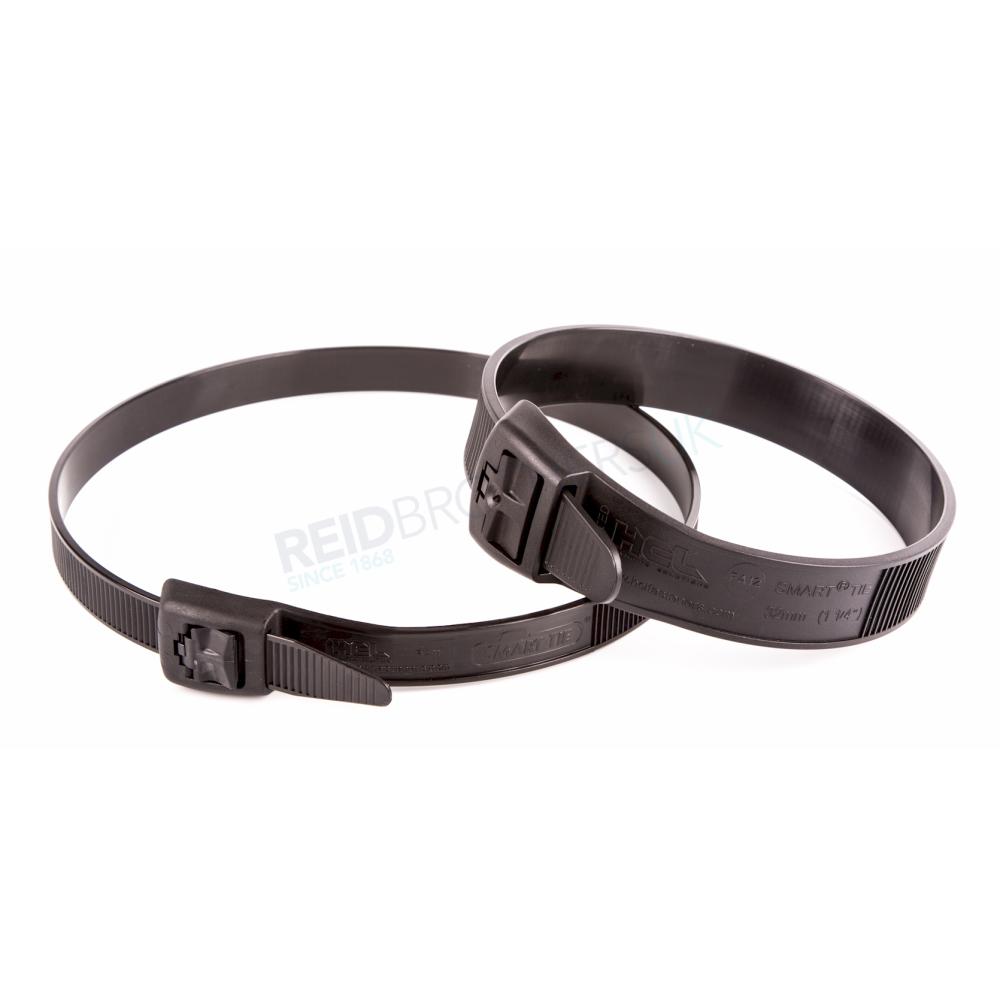

HCL Smart Tie

Lightweight and very easy to use the HCL Smart ® Tie has become the ideal downhole cable tie solution and compatibility with the Smart® Protector provides a complete solution for many down-hole applications.
  • Available for export available for export

Key product features

About HCL Smart Tie

Smart® Ties are extremely durable ties made from a range of high-temperature polymers making them capable of withstanding temperatures up to 250°C

The installation process is extremely easy and if a speedy application is necessary pneumatic installation tool is available. Popular in subsea and downhole applications. Often used to clamp cables for protection and restraint purposes.

Smart ® Tie is a patented heavy duty polymer cable tie, able to withstand system loads in excess of 100 kg. It has the advantage of being manufactured from a range of high-temperature polymers, giving it superior chemical and temperature resistance up to 250°C (certain sizes only)

The Smart ® Tie is also used widely in offshore applications such as Cable Protection and can be manufactured from long-life Nylon 11 or 12.

 Product Sheets

HCL Smart Products Catalogue
HCL Smart Products Catalogue

Key Features

  • Heat resistant from 100°C to 250°C
  • Medium to long term use
  • System Strength from 400kg to 815kg
  • High speed tools available
  • Can withstand corrosive elements like H2S
  • Compatible with Smart® Protector for downhole applications

Benefits

  • Long Life Material
  • Quick & Easy to install
  • Suitable for Downhole Applications
  • Ideal for smaller diameters

Application

  • Cable Protection solutions (Half Shells)
  • Downhole Cable attachment
  • Sensor Attachment
  • Subsea Markers

¾" Range


Tie Width Material Max System Strength Max Temp Resistance Longevity Gas Resistance
¾" Nylon 66 1131lbf (513kgf) 125°C ( 257F ) Medium Term Limited
¾" Nylon 12 881lbf (400kgf) 100°C Long Term Fair
¾" Nylon 11 881lbf (400kgf) 105°C Long Term Fair
¾" PPS 1133lbf (514kgf) 175°C Long Term Very Good
¾" PEEK 1794lbf (815kgf) 250°C Long Term Excellent

1 ¼" Range


Tie Width Material Max System Strength Max Temp Resistance Longevity Gas Resistance
1 ¼" Nylon 66 1131lbf (513kgf) 125°C Medium Term Limited
1 ¼" Nylon 12 881lbf (414kgf) 100°C Long Term Fair
1 ¼" Nylon 11 881lbf ( 400kgf) 105°C Long Term Fair
1 ¼" PPS 1133lbf (514kgf) 175°C Long Term Very Good
1 ¼" PEEK 1794lbf (815kgf) 250°C Long Term Excellent

¾" Tool Options & Retention


Band-Width Tool Minimum System Retention Tension Control Tool Type
¾" (19mm) SM-FT-1000-20ST 450lbf (204kgf) Manual (20 seconds) Torque Control
¾" (19mm) SM-FT-2000-19 405lbf (184kgf) Manual (10 Seconds) Hand
¾" (19mm) SM-FT-3000-20ST 360lbf (163kgf) Pneumatic (5 seconds) Air Regulator

1 ¼" Tool Options & Retention


Band-Width Tool Minimum System Retention Tension Control Tool Type
1 ¼" (32mm) SM-FT-1000-32ST 562lbf (255kgf) Manual (20 seconds) Torque Wrench
1 ¼" (32mm) SM-FT-2000-32 562lbf (255kgf) Manual (10 seconds) Hand
1 ¼" (32mm) SM-FT-3000-32ST 899lbf (408kgf) Pneumatic(5 seconds) Air Regulator
