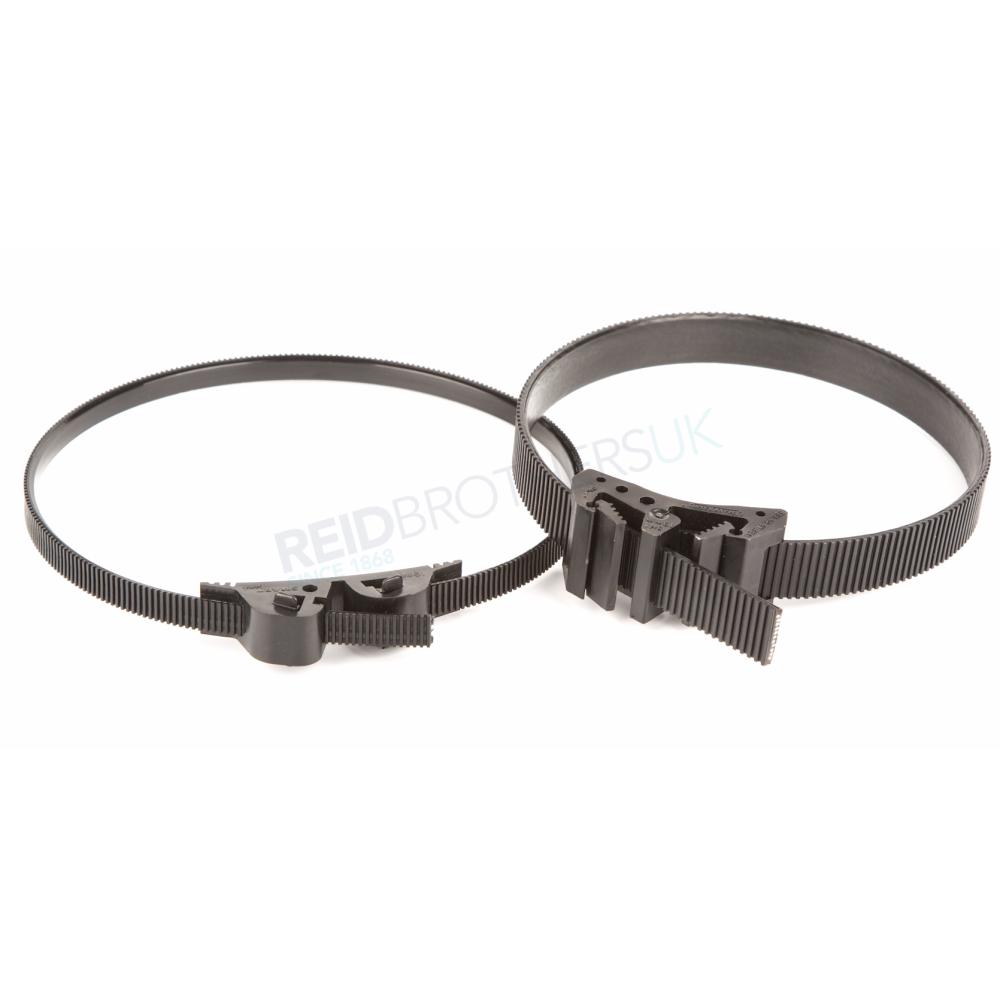

HCL Smart Standard Band

HCL Smart® Standard Band is a clamping system that has been developed throughout the years with one aim: to be the best clamping solution in the industry replacing metal banding
  • Available for export available for export

Key product features

About HCL Smart Band

HCL Smart® Standard Band is a clamping system that has been developed throughout the years with one aim: to be the best clamping solution in the industry replacing metal banding. Production processes of these bands are extremely strict using only high-quality materials: Nylon 12 or Nylon 66.

Benefits of Nylon 12 (PA 12)

  • Low water absorption
  • High strength and flexibility
  • Superior chemical and UV resistance
  • Excellent abrasion and surface slip characteristics
  • Remarkable high impact strength at low temperatures

Benefits of Nylon 66 (PA 66)

  • Versatile and Quick and easy to use
  • High tensile strength
  • Improved stiffness
  • High chemical resistance
  • Heat and wear resistant, suitable for applications with a higher temperature

Ideal for Subsea

Smart® Band Standard has been installed successfully in subsea conditions for the past 10 years. Due to being made from high quality durable materials, the life expectancy of this product is 30 years.





Product Sheets

HCL Smart Products Catalogue

Key Features

  • Strength - Up to 440kg
  • Non-Corrosive
  • Safe and Easy to Fit
  • Cut to length for any size
  • Long life materials
  • Full Range of Installation Tools
  • Suitable for Divers

Popular Applications

  • Cable Bundling
  • Pile Protection
  • Subsea Marker Attachment
  • Anode Attachment
  • Distributed & Flowline Buoyancy attachment
  • Cable Protection solutions (Half Shells)
  • Cable & Sensor Attachment
  • Pier & Jetty Pile Protection systems
  • Street Furniture
  • Sign Attachment
  • Insulation
  • Electrical
  • Cooling Towers
  • HVAC (Flexible Ducting)
  • Chemical

Band Specifications


Band Width Available Lengths Material Max System Strength Suitability
¼" (7mm) 30m & 250m Nylon 66 198Lbs (98kg) Onshore
⅜" (10mm) 30m & 125m Nylon 66 581Lbs (264kg) Onshore
⅜" (10mm) 30m & 125m Nylon 12 280Lbs (127kg) Subsea/Long Life
¾" (19mm) 30m & 60m Nylon 66 696Lbs (440kg) Onshore

Compatible Buckle Specifications


Compatable Band Width Material Suitability Style Min. Order Quantity
¼" (7mm) Nylon 66 Onshore Standard 50
⅜" (10mm) Nylon 66 Onshore Standard 50
⅜" (10mm) Nylon 12 Subsea/Long Life Standard 50
¾" (19mm) Nylon 66 Onshore Standard 5
