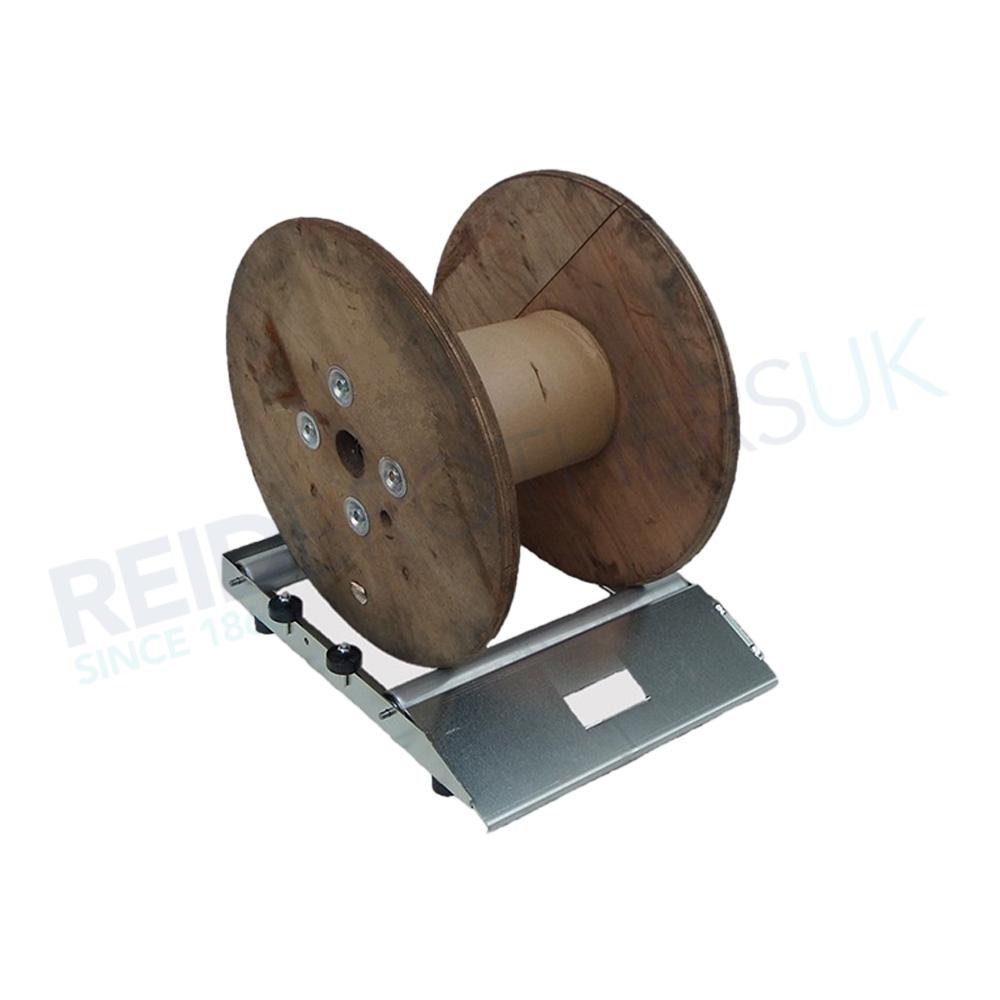

Cable Drum Rotator

The CDR3 is designed for rotating heavy duty cable drums. With a maximum drum weight of 200kg, this cable drum rotator comes fitted with 2 adjustable rollers and a sealed ball bearing. It is perfect for use with armored steel wire and other heavy duty cables.
  • Pressed steel construction
  • Ideal for where space is limited.
  • Zinc Finished
  • Available for export available for export

Key product features

This is a compact light weight cable drum rotator. Drums are simply roller up the ramp on to the adjustable rollers to allow it to spin freely.

Manufactured from steel, the SureFast Drum Rotator has adjustable rollers to accommodate drums of different sizes. Sealed roller bearings provide protection against contamination and corrosion. Ramps on either side facilitates easy loading and removal of cable drums

  • 60 mm diameter zinc plated rollers
  • Sealed roller bearings fitted
  • Spring loaded shafts for easy replacement/adjustment
  • Capacity 200 Kg
Max Load Drum Diameter Drum Width Base Size Weight
200 KG

Max - 750mm

Min - 200mm

520mm 630mm x 550mm 16KG
