BMR Bellmouth.jpg_1

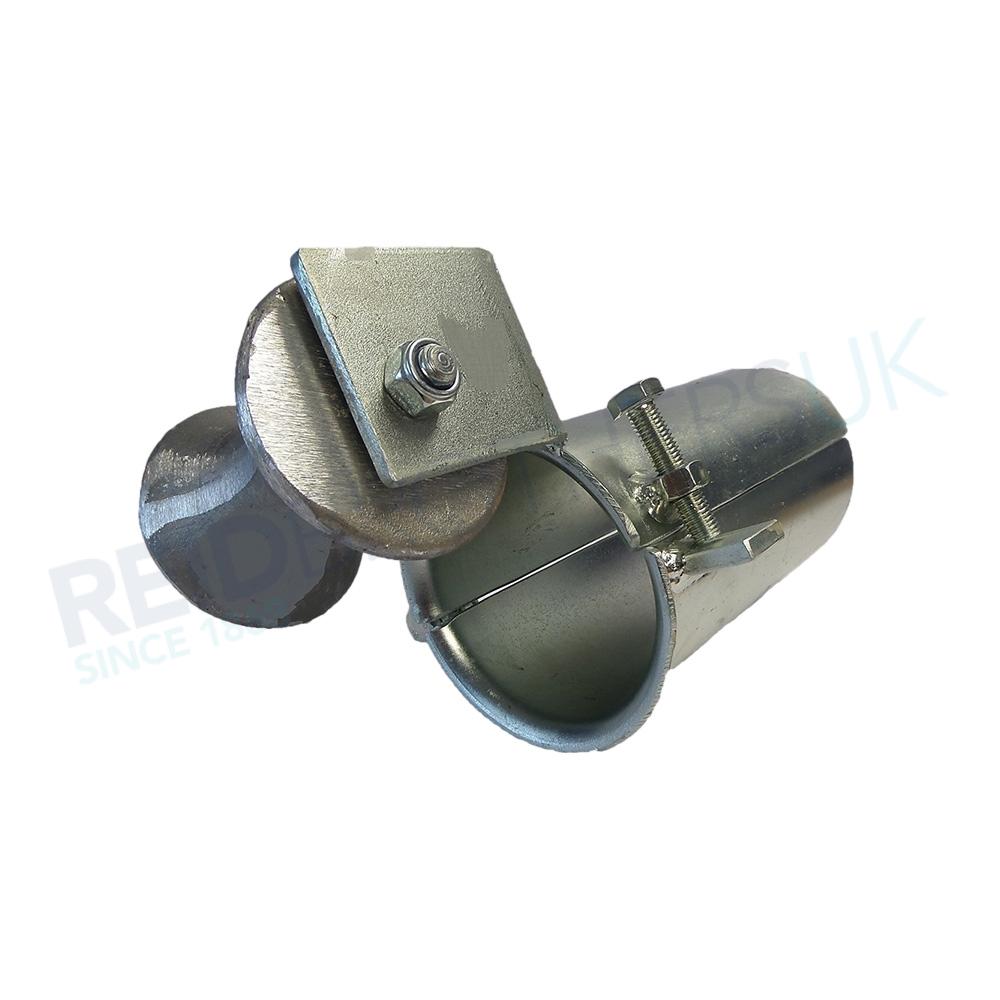

BMR Steel Bellmouth With Guide Roller

Inseparable hinged halves to guide the cable through the duct to avoid damage to both the Cable or the Duct. BMR Models are fitted with a Guide Roller for additional rope guidance and protection. Zinc Plated
  • Special Sizes can be manufactured on request.
  • Available for export available for export
Please choose an option
BMR Bellmouth
90-97mm
BMR Bellmouth
99-106mm
BMR Bellmouth
124-130mm
BMR Bellmouth
148-155mm
BMR Bellmouth
152-176mm
BMR Bellmouth
170-180mm
BMR Bellmouth
194-212mm
BMR Bellmouth
220-239mm
BMR Bellmouth
246-266mm
BMR Bellmouth
60-69mm
BMR Bellmouth
76-89mm

Key product features

Steel Hinged Bellmouths are inserted into ducts and secured in position with an expansion bolt

The bellmouth minimises damage to the cable and the duct edges during cable laying operations

All sizes are available plain or with a guide roller fitted
