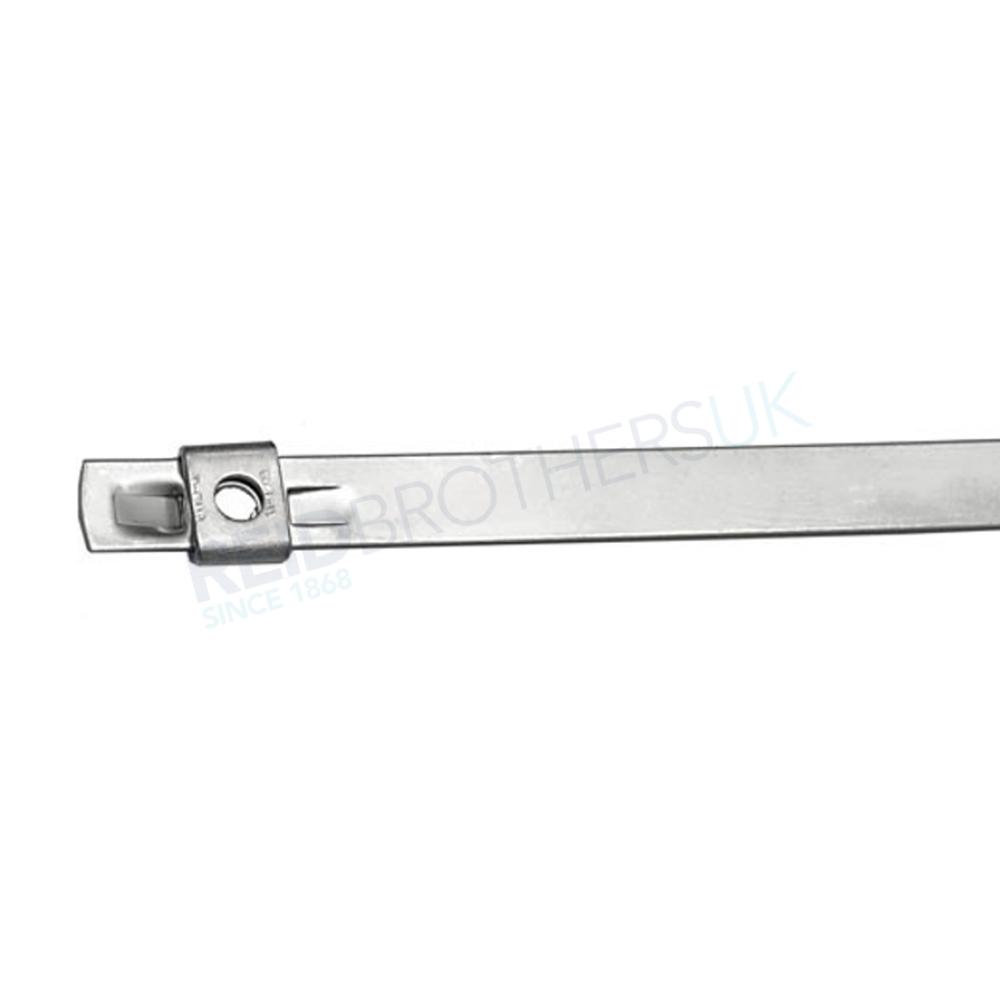

Band-IT Tie-Lok Ties

BAND-IT Tie-Lok ties offer a unique, patented dimple lock with a smooth ID and a low profile. This is a fast, consistent and reliable clamp. Used in many industries from automotive to cable bundling
  • Available for export available for export

Key product features

304 and 316 Stainless steel offers very good resistance to mild atmosphere, fresh water and the sun's UV rays

When installed with the A92079 Tie-Lok II tool can withstand forces above 250 pounds

Forms a low profile single wrapped assembly to secure cables, hoses, I.D. Tags, CV Boots, filter bags

Available in 2 Widths: 6.35mm & 9.53mm

Tie-Lok Ties - ¼" Range


Part # Material Width Length Thickness Maximum Diameter Single Loop Maximum Loop Tensile Strength Package Quantity Package Weight
AS2119 304 SS ¼" / 6.35mm 10" / 254mm 0.015" / 0.38mm 2" / 51mm 250lbs 100 / Bag 1.2lbs / 0.6kg
AS2129 304 SS ¼" / 6.35mm 16.5" / 419mm 0.015" / 0.38mm 4" / 101mm 250lbs 100 / Bag 1.8lbs / 0.9kg
AS2139 304 SS ¼" / 6.35mm 22.5" / 572mm 0.015" / 0.38mm 6" / 152mm 250lbs 100 / Bag 2.6lbs / 1.2kg
AS2149 304 SS ¼" / 6.35mm 29.0" / 737mm 0.015" / 0.38mm 8" / 203mm 250lbs 100 / Bag 3.5lbs / 1.5kg
AS2159 304 SS ¼" / 6.35mm 35" / 889mm 0.015" / 0.38mm 10" / 254mm 250lbs 100 / Bag 3.9lbs / 1.8kg
AS4119 316 SS ¼" / 6.35mm 10" / 254mm 0.015" / 0.38mm 2" / 51mm 250lbs 100 / Bag 1.2lbs / 0.6kg
AS4129 316 SS ¼" / 6.35mm 16.5" / 419mm 0.015" / 0.38mm 4" / 101mm 250lbs 100 / Bag 1.8lbs / 0.9kg
AS4139 316 SS ¼" / 6.35mm 22.5" / 572mm 0.015" / 0.38mm 6" / 152mm 250lbs 100 / Bag 2.6lbs / 1.2kg
AS4149 316 SS ¼" / 6.35mm 29.0" / 737mm 0.015" / 0.38mm 8" / 203mm 250lbs 100 / Bag 3.3lbs / 1.5kg
AS4159 316 SS ¼" / 6.35mm 35.0" / 889mm 0.015" / 0.38mm 10" / 254mm 250lbs 100 / Bag 3.9lbs / 1.8kg

Tie-Lok Ties - ⅜" Range


Part # Material Width Length Thickness Maximum Diameter Single Loop Maximum Loop Tensile Strength Package Quantity Package Weight
AS6219 304 SS ⅜" / 9.53mm 8.6" / 219mm 0.020" / 0.51mm 1.5" / 40mm 350lbs 100 / Bag 2.1lbs / 1.0kg
AS6229 304 SS ⅜" / 9.53mm 11.5" / 292mm 0.020" / 0.51mm 2" / 51mm 350lbs 100 / Bag 2.8lbs / 1.3kg
AS6239 304 SS ⅜" / 9.53mm 17.5" / 445mm 0.020" / 0.51mm 4" / 101mm 350lbs 100 / Bag 4.1lbs / 1.9kg
AS6249 304 SS ⅜" / 9.53mm 24" / 610mm 0.020" / 0.51mm 6" / 152mm 350lbs 100 / Bag 5.5lbs / 2.5kg
AS6259 304 SS ⅜" / 9.53mm 30.5" / 775mm 0.020" / 0.51mm 8" / 203mm 350lbs 100 / Bag 6.9lbs / 3.1kg
