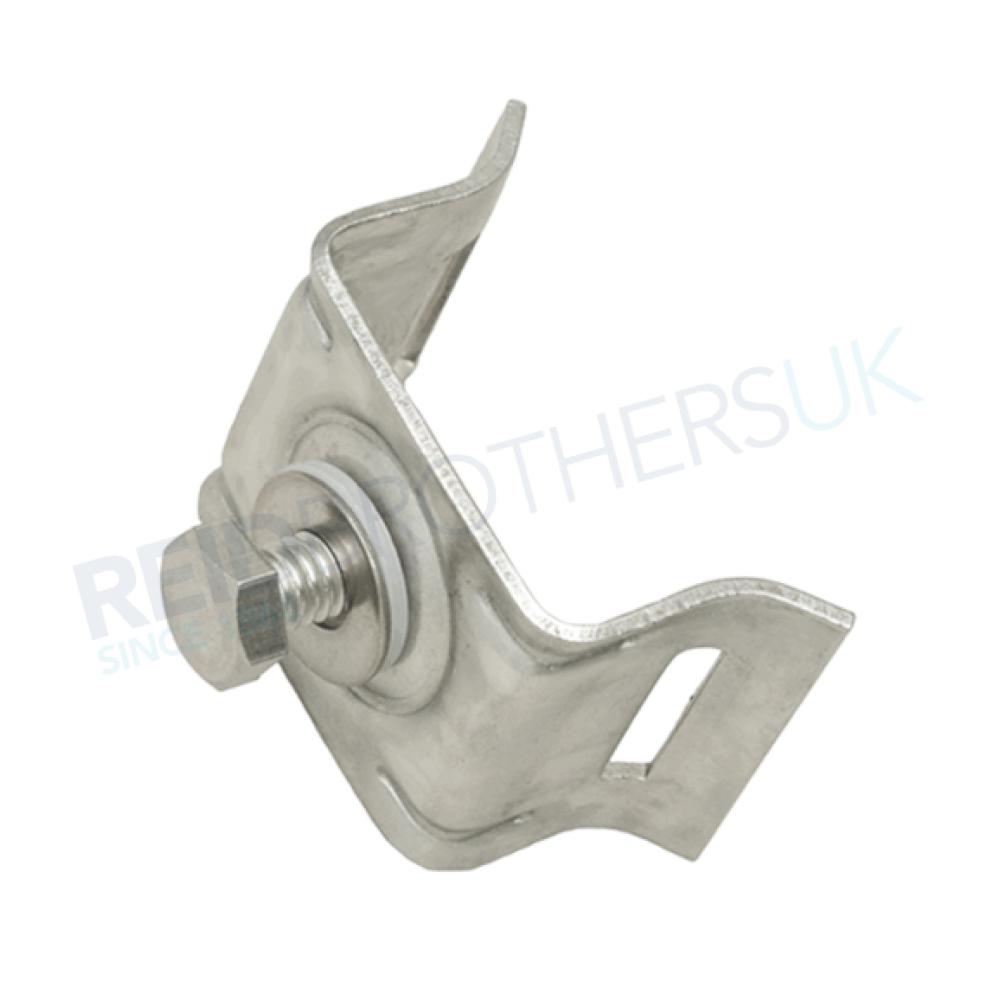

Band-IT Single Bolt Flared Leg Brack-It

Band-IT’s Single Bolt Flared Leg Brack-It is used to secure traffic signs, security devices and enclosures onto circular posts or lampposts. The flared leg design ensures a secure fit for each application of almost every diameter.
  • Fully threaded to solidly anchor attachment bolts
  • Can be reused
  • Grade 304 Stainless Steel
  • Thickness – 0.07”
  • 50 per box
  • Available for export available for export

Key product features

About the Brack-It's

The Band-IT Single Bolt Flared Leg Brack-It is used to mount various applications including traffic signs, advertisements and enclosures. The Grade 304 design means that these Brack-It’s are resistant to corrosion and have the ability to handle both high and low temperatures. These Single Bolt Brack-It’s are ideal for outdoor conditions as they can withstand stress, wind and vibration due to their specially designed reinforcement ribs.

Made to industry standard, these Brack-It’s are designed for applications on circular poles which have a greater diameter than 3”, for extreme security and strength.

Application

No nuts are required as the D02199 pack includes a Stainless Steel Bolt, nylon washer and 5/16-18 x 3/4" Stainless Steel head hex bolt with a metal and fibre washer. These Brack-It’s have a 3/4” wide slot which allows for either a single or a double wrap of Stainless Steel band if you wish to make your application extra secure.

These Brack-It’s can be applied with Band-IT Stainless Steel Band, Valu-strap, and also our own SureFast Stainless Steel Band

Single Bolt Flared Leg Brack-It Range

Reference Description Thickness Package Quantity Package Weight
D02199 Single bolt flared leg SS Brack-It with SS bolt, washer and fibre washer. ¾ " slot 0.070" / 1.78mm 50 / Box 7.0lbs / 3.2kg
D02299 Single bolt flared leg SS Brack-It only. ¾" slot 0.070" / 1.78mm 50 / Box 7.5lbs / 5.5kg
